AN IMAGE IS WORTH 16X16 WORDS: TRANSFORMERS FOR IMAGE RECOGNITION AT SCALE

tags: paper

ABSTRACT

• Image classification tasks Previous: CNN Paper: pure transformer

• How to do that

  • Transformer

• Experiment

  • Pre-train and transfer to multiple mid-sized or small image recognition benchmarks (ImageNet, CIFAR-100, VTAB, etc.)

INTRODUCTION

• Step
  • split an image into patches
  • embeddings
  • Transformer
  • MLP
• When trained on mid-sized datasets such as ImageNet without strong regularization, these models yield modest accuracies of a few percentage points below ResNets of comparable size
  • Transformers lack some of the inductive biases such as translation equivariance and locality 如果每個patch單獨做self-attention呢?
• Trained in larger datasets, excellent result
  • large scale training trumps inductive bias.

METHOD

follow the original Transformer (Vaswani et al., 2017) as closely as possible

VISION TRANSFORMER (VIT)

Reshape and Unroll

The input of transformer is a sequence, so reshape the image

Linear Projection and Embedding

$z_0 = [x_{class}; x_p^1E; x_p^2E; ...; x_p^NE] + E_{pos}$ N = 9 in this example $E\in \mathbb{R}^{(P^2C)\times D}$ $E_{pos}\in \mathbb{R}^{(N+1)\times D}$

Embedding code

self.pos_embedding = nn.Parameter(torch.randn(1, num_patches + 1, dim))
x + = self.pos_embedding(:,:(n + 1))

class token

similar to BERT (initial zero)

Transformer Encoder

Transformer

MLP

Fully connected and activation function

FINE-TUNING AND HIGHER RESOLUTION

Pre-train on large datasets, and fine-tune to smaller task. Step

• Pre-train
  • predition head: MLP with one hidden layer

• Remove pre-trained predition head
• Attach a zero-initialized D x K feedforward layer


EXPERIMENTS

SETUP

==Datasets.==

Pre-train

• ILSVRC-2012 ImageNet dataset: 1k classes and 1.3M images
• ImageNet-21k: 21k classes and 14M images
• JFT: 18k classes and 303M high resolution images

benchmark tasks: (Prepross by Big transfer (BiT): General visual representation learning.)

• ImageNet on the original validation labels and the cleaned-up ReaL labels
• CIFAR-10/100
• Oxford-IIIT Pets
• Oxford Flowers-102

19-task VTAB classification suite:

• Natural：tasks like the above, Pets, CIFAR
• Specialized：medical and satellite imagery
• Structured：tasks that require geometric understanding like localization

==Model Variants.== Layers: How many encoder block Hidden size D: The dim of output of linear projection MLP size: Heads: How many head in the Multi-Head Attention

==Training & Fine-tuning.==

Optimization Adam: $\beta_1 = 0.9, \beta_2 = 0.999, batch size = 4096, high weight decay of 0.1$

Fine-tune SGD with momentum: $batch size = 512$

==Metrics.==

results

• few-shot accuracy: solving a regularized least-squares regression problem that maps the (frozen) representation of a subset of training images to ${-1,1}^K$ target vectors
• fine-tuning accuracy: after fine-tuning

:::warning 補充 (shot) n-shot: 1 class have n samples :::

COMPARISON TO STATE OF THE ART

PRE-TRAINING DATA REQUIREMENTS

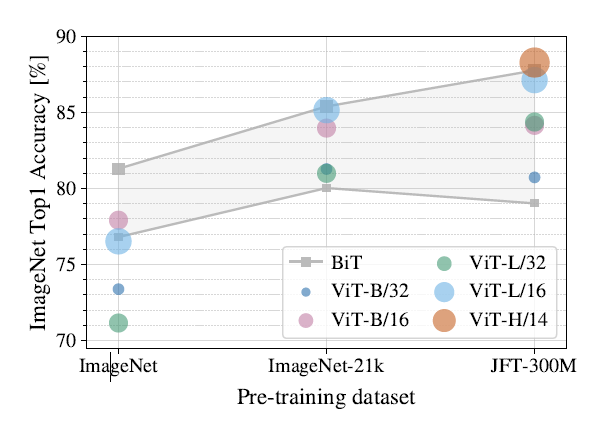

The comparison between small datasets and larger datasets when pre-trained.

• large ViT models perform worse than BiT
• large ViT models shine when pre-trained on larger datasets.

  The number in the above picture means P


The comparison between different size of subset

• use early-stopping, and report the best validation accuracy achieved during training


SCALING STUDY

INSPECTING VISION TRANSFORMER

SELF-SUPERVISION

my result

acc	time
0.9874	2:20:00
