Wildfire Tracking with Autonomous Vehicles

fwd-edu-breakout=github:climate-action-kits/pxt-fwd-edu/fwd-breakout
sonar=github:climate-action-kits/pxt-fwd-edu

Step 1 @showdialog

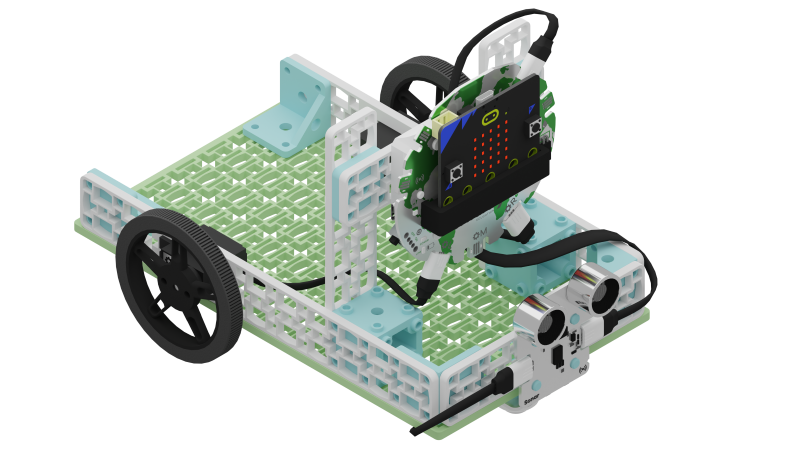

Welcome to Wildfire Tracking with Autonomous Vehicles built project

Step 2 @showdialog

In this coding tutorial the vehicle will be moving around a perimeter and keeping a check on Light and Temperature. Press the button A and B to start and stop moving the vehicle.

Step 3 @showdialog

Turn on the Climate Action Kit board. breakout board

Step 4 @showhint

Click three dots besides |Download| button, and click on Connect Device. Next, follow the steps to pair your micro:bit. pair gif

Step 5 @showhint

Next, click the |Download| button to download the blank project to start-up the simulators.

Step 6 @showdialog

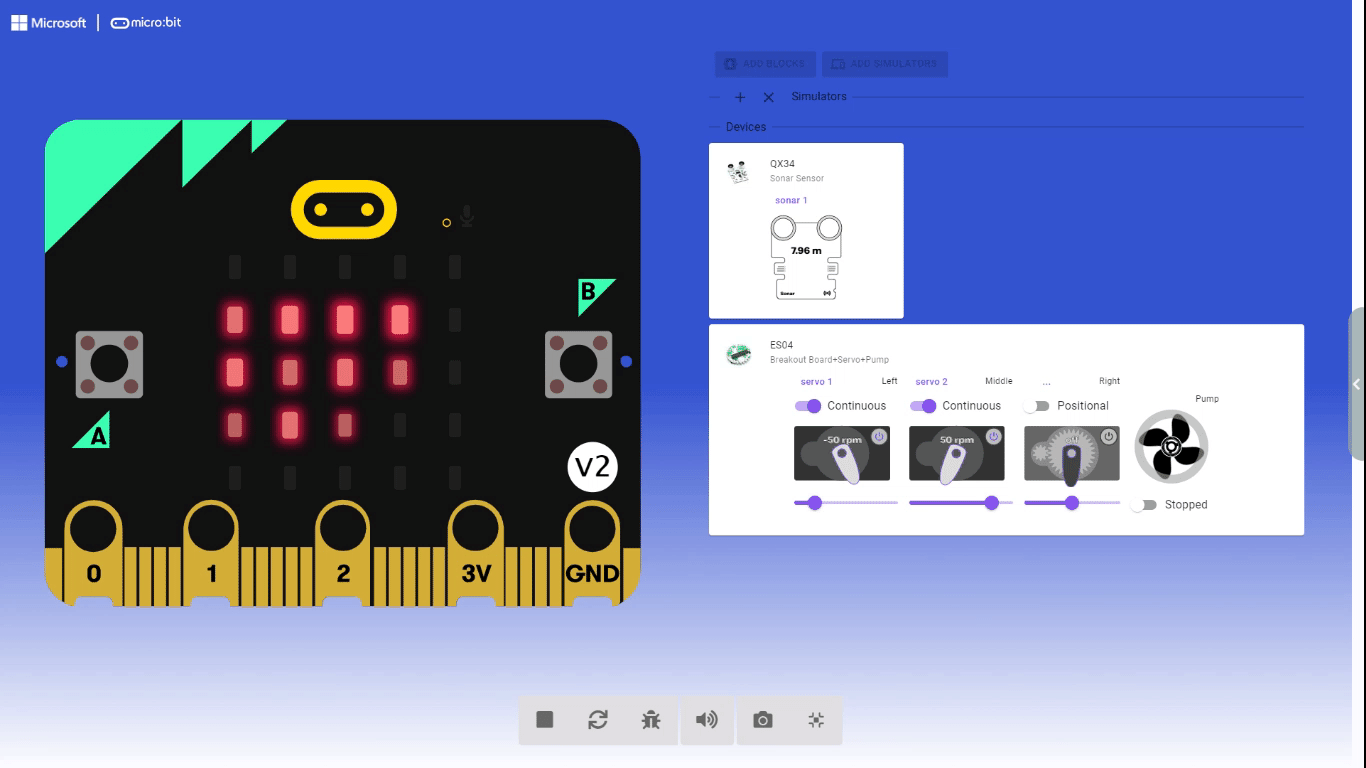

This is how the simulators should look after a successful download. You can see the Servo Motors along side the Pump. initial-dowload-gif

Step 7 @showhint

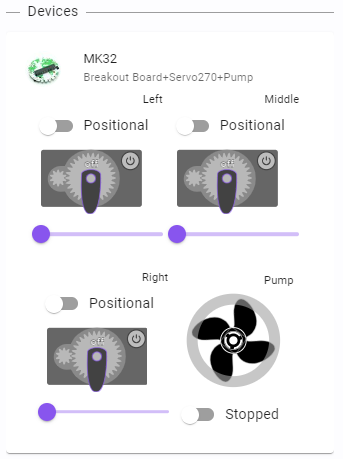

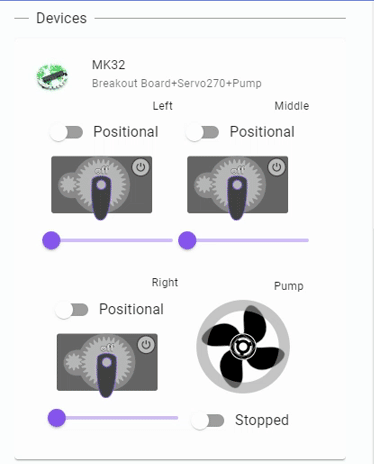

Look below the @boardname@ simulator to see the Climate Action Board and the connected devices. Try to turn the motors on and off using the simulator and observe the changes. servo-nocode

Step 8

Click ||fwdMotors:Motors|| drag and drop ||fwdMotors:setup driving|| block inside ||Basic:on start|| block.

fwdMotors.setupDriving(
fwdMotors.leftServo,
fwdMotors.leftServo,
)

Step 9

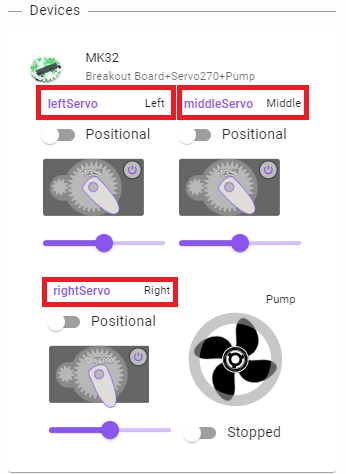

Change the ||fwdMotors:right motor to rightServo||. Keep the ||fwdMotors: left motor to leftServo||.

fwdMotors.setupDriving(
fwdMotors.leftServo,
fwdMotors.rightServo,
0
)

Step 10

Click ||Variables:Variables|| and then click |Make a Variable| to create these ||Variables:Variables||

  • ||Variables:IsDrivingEnabled||
  • ||Variables:lightThreshold||
  • ||Variables:temperatureThreshold||

Step 11

Click ||Input:Input|| drag and drop ||Input:on button A pressed|| block. Right click and duplicate it to get another ||Input:on button A pressed|| block. Change ||Input:A|| to ||Input:B|| for the greyed ||Input:on button A pressed|| block.

input.onButtonPressed(Button.A, function () {
})
input.onButtonPressed(Button.B, function () {
})
fwdMotors.setupDriving(
fwdMotors.leftServo,
fwdMotors.rightServo,
0
)
basic.forever(function () {
})

Step 12

Click ||Variables:Variables|| drag and drop ||Variables:set IsDrivingEnabled to 0|| block inside ||Input:on button A pressed|| block and also inside ||Input:on button B pressed|| block.

input.onButtonPressed(Button.A, function () {
    IsDrivingEnabled = 0
})
input.onButtonPressed(Button.B, function () {
    IsDrivingEnabled = 0
})

fwdMotors.setupDriving(
fwdMotors.leftServo,
fwdMotors.rightServo,
0
)
basic.forever(function () {
})

Step 13

Click ||Logic:Logic|| drag and drop ||Logic:true|| block to replace ||Variables:0|| of ||Variables:set IsDrivingEnabled to 0|| block inside ||Input:on button A pressed|| block.

input.onButtonPressed(Button.A, function () {
    IsDrivingEnabled = true
})
input.onButtonPressed(Button.B, function () {
    IsDrivingEnabled = 0
})
fwdMotors.setupDriving(
fwdMotors.leftServo,
fwdMotors.rightServo,
0
)
basic.forever(function () {
})

Step 14

Click ||Logic:Logic|| drag and drop ||Logic:false|| block to replace ||Variables:0|| of ||Variables:set IsDrivingEnabled to 0|| block inside ||Input:on button B pressed|| block.

input.onButtonPressed(Button.A, function () {
    IsDrivingEnabled = true
})
input.onButtonPressed(Button.B, function () {
    IsDrivingEnabled = false
})
fwdMotors.setupDriving(
fwdMotors.leftServo,
fwdMotors.rightServo,
0
)
IsDrivingEnabled = false
basic.forever(function () {
})

Step 15

Click ||Logic:Logic|| drag and drop ||Logic:if true then else|| block inside ||basic:forever|| block.

input.onButtonPressed(Button.A, function () {
    IsDrivingEnabled = true
})
input.onButtonPressed(Button.B, function () {
    IsDrivingEnabled = false
})
fwdMotors.setupDriving(
fwdMotors.leftServo,
fwdMotors.rightServo,
0
)
basic.forever(function () {
    if (true) {
    }
    else {
    }
})

Step 16

Click ||Loops:Loops|| drag and drop ||Loops:repeat 4 times|| block to nest inside ||Logic:if true then|| block.

input.onButtonPressed(Button.A, function () {
    IsDrivingEnabled = true
})
input.onButtonPressed(Button.B, function () {
    IsDrivingEnabled = false
})
fwdMotors.setupDriving(
fwdMotors.leftServo,
fwdMotors.rightServo
)
basic.forever(function () {
    if (true) {
        for (let index = 0; index < 4; index++) {
    }
    } else {
    }
})

Step 17

Click ||logic:Logic|| drag and drop ||logic:if true then else|| block to nest inside ||Loops:repeat 4 times|| block.

input.onButtonPressed(Button.A, function () {
    IsDrivingEnabled = true
})
input.onButtonPressed(Button.B, function () {
    IsDrivingEnabled = false
})
let IsDrivingEnabled = false
fwdMotors.setupDriving(
fwdMotors.leftServo,
fwdMotors.rightServo,
0
)
basic.forever(function () {
    if (true) {
    for (let index = 0; index < 4; index++){
        if (true) {
    }
    else {
    }
    } }
    else {
    }
})

Step 18

Click ||Variables:Variables|| drag and drop ||Variables:IsDrivingEnabled|| block to replace ||Logic:true|| condition of ||Logic:if true then|| block.

input.onButtonPressed(Button.A, function () {
    IsDrivingEnabled = true
})
input.onButtonPressed(Button.B, function () {
    IsDrivingEnabled = false
})
let IsDrivingEnabled = false
fwdMotors.setupDriving(
fwdMotors.leftServo,
fwdMotors.rightServo,
0
)
basic.forever(function () {
    if (IsDrivingEnabled) {
    for (let index = 0; index < 4; index++){
        if (true) {
    }
    else {
    }
    }
    }else {
    }
})

Step 19

Click ||fwdMotors:Motors|| drag and drop ||fwdMotors:stop motors|| block inside ||Logic:else condition||.

input.onButtonPressed(Button.A, function () {
    IsDrivingEnabled = true
})
input.onButtonPressed(Button.B, function () {
    IsDrivingEnabled = false
})
let IsDrivingEnabled = false
fwdMotors.setupDriving(
fwdMotors.leftServo,
fwdMotors.rightServo,
0
)
basic.forever(function () {
    if (IsDrivingEnabled) {
    for (let index = 0; index < 4; index++){
        if (true) {
    }
    else {
    }
    }
    }else {
    fwdMotors.stop()
    }
})

Step 20

Click ||fwdMotors:Motors|| drag and drop ||fwdMotors:drive forward at 50|| block.

input.onButtonPressed(Button.A, function () {
    IsDrivingEnabled = true
})
input.onButtonPressed(Button.B, function () {
    IsDrivingEnabled = false
})
let IsDrivingEnabled = false
fwdMotors.setupDriving(
fwdMotors.leftServo,
fwdMotors.rightServo
)
basic.forever(function () {
    if (IsDrivingEnabled) {
        for (let index = 0; index < 4; index++) {
            fwdMotors.drive(fwdMotors.DrivingDirection.Forward, 50)
           if (true) {
            } else {
            }
        }
    } else {
        fwdMotors.stop()
    }
})

Step 21

Click ||basic:Basic|| drag and drop ||basic:pause (ms) 100|| block under ||fwdMotors:drive forward at 50||. Change ||basic:100|| to ||basic:5000||.

input.onButtonPressed(Button.A, function () {
    IsDrivingEnabled = true
})
input.onButtonPressed(Button.B, function () {
    IsDrivingEnabled = false
})
let IsDrivingEnabled = false
fwdMotors.setupDriving(
fwdMotors.leftServo,
fwdMotors.rightServo
)
basic.forever(function () {
    if (IsDrivingEnabled) {
        for (let index = 0; index < 4; index++) {
            fwdMotors.drive(fwdMotors.DrivingDirection.Forward, 50)
            basic.pause(5000)
           if (true) {
            } else {
            }
        }
    } else {
        fwdMotors.stop()
    }
})

Step 22

Click ||fwdMotors:Motors|| drag and drop ||fwdMotors:turn 0' in place|| block under ||basic:pause (ms) 5000|| block. Change ||fwdMotors:0|| to ||fwdMotors:25||.

input.onButtonPressed(Button.A, function () {
    IsDrivingEnabled = true
})
input.onButtonPressed(Button.B, function () {
    IsDrivingEnabled = false
})
let IsDrivingEnabled = false
fwdMotors.setupDriving(
fwdMotors.leftServo,
fwdMotors.rightServo
)
basic.forever(function () {
    if (IsDrivingEnabled) {
        for (let index = 0; index < 4; index++) {
            fwdMotors.drive(fwdMotors.DrivingDirection.Forward, 50)
            basic.pause(5000)
            fwdMotors.turn(25)
           if (true) {
            } else {
            }
        }
    } else {
        fwdMotors.stop()
    }
})

Step 23

Click ||Logic:Logic|| drag and drop ||Logic: or || block to replace ||Logic:true|| condition under of ||Logic:if true then|| block under ||fwdMotors:turn 25' in place|| block.

input.onButtonPressed(Button.A, function () {
    IsDrivingEnabled = true
})
input.onButtonPressed(Button.B, function () {
    IsDrivingEnabled = false
})
let IsDrivingEnabled = false
fwdMotors.setupDriving(
fwdMotors.leftServo,
fwdMotors.rightServo
)
basic.forever(function () {
    if (IsDrivingEnabled) {
        for (let index = 0; index < 4; index++) {
            fwdMotors.drive(fwdMotors.DrivingDirection.Forward, 50)
            basic.pause(5000)
            fwdMotors.turn(25)
           if (0 || 0) {
            } else {
            }
        }
    } else {
        fwdMotors.stop()
    }
})

Step 24

Click ||Logic:Logic|| drag and drop ||Logic: or || block to replace left side of ||Logic: or || block condition.

input.onButtonPressed(Button.A, function () {
    IsDrivingEnabled = true
})
input.onButtonPressed(Button.B, function () {
    IsDrivingEnabled = false
})
let IsDrivingEnabled = false
fwdMotors.setupDriving(
fwdMotors.leftServo,
fwdMotors.rightServo
)
basic.forever(function () {
    if (IsDrivingEnabled) {
        for (let index = 0; index < 4; index++) {
            fwdMotors.drive(fwdMotors.DrivingDirection.Forward, 50)
            basic.pause(5000)
            fwdMotors.turn(25)
           if (0 || 0 || 0) {
            } else {
            }
        }
    } else {
        fwdMotors.stop()
    }
})

Step 25

Click ||Logic:Logic|| drag and drop ||Logic: 0 < 0|| block to replace left side of ||Logic: or || block condition.

input.onButtonPressed(Button.A, function () {
    IsDrivingEnabled = true
})
input.onButtonPressed(Button.B, function () {
    IsDrivingEnabled = false
})
let IsDrivingEnabled = false
fwdMotors.setupDriving(
fwdMotors.leftServo,
fwdMotors.rightServo
)
basic.forever(function () {
    if (IsDrivingEnabled) {
        for (let index = 0; index < 4; index++) {
            fwdMotors.drive(fwdMotors.DrivingDirection.Forward, 50)
            basic.pause(5000)
            fwdMotors.turn(25)
           if (0 < 0  || 0 || 0) {
            } else {
            }
        }
    } else {
        fwdMotors.stop()
    }
})

Step 26

Click ||Logic:Logic|| drag and drop ||Logic: 0 < 0|| block to replace middle ||Logic: or || block condition.

input.onButtonPressed(Button.A, function () {
    IsDrivingEnabled = true
})
input.onButtonPressed(Button.B, function () {
    IsDrivingEnabled = false
})
let IsDrivingEnabled = false
fwdMotors.setupDriving(
fwdMotors.leftServo,
fwdMotors.rightServo
)
basic.forever(function () {
    if (IsDrivingEnabled) {
        for (let index = 0; index < 4; index++) {
            fwdMotors.drive(fwdMotors.DrivingDirection.Forward, 50)
            basic.pause(5000)
            fwdMotors.turn(25)
           if (0 < 0  || 0 < 0 || 0) {
            } else {
            }
        }
    } else {
        fwdMotors.stop()
    }
})

Step 27

Click ||Logic:Logic|| drag and drop ||Logic: 0 < 0|| block to replace right ||Logic: or || block condition.

input.onButtonPressed(Button.A, function () {
    IsDrivingEnabled = true
})
input.onButtonPressed(Button.B, function () {
    IsDrivingEnabled = false
})
let IsDrivingEnabled = false
fwdMotors.setupDriving(
fwdMotors.leftServo,
fwdMotors.rightServo
)
basic.forever(function () {
    if (IsDrivingEnabled) {
        for (let index = 0; index < 4; index++) {
            fwdMotors.drive(fwdMotors.DrivingDirection.Forward, 50)
            basic.pause(5000)
            fwdMotors.turn(25)
           if (0 < 0  || 0 < 0 || 0 < 0) {
            } else {
            }
        }
    } else {
        fwdMotors.stop()
    }
})

Step 28

Click ||Variables:Variables|| drag and drop ||Variables:lightThreshold|| block to replace left ||Logic:0|| of ||Logic:Comparison|| condition.

input.onButtonPressed(Button.A, function () {
    IsDrivingEnabled = true
})
input.onButtonPressed(Button.B, function () {
    IsDrivingEnabled = false
})
let IsDrivingEnabled = false
fwdMotors.setupDriving(
fwdMotors.leftServo,
fwdMotors.rightServo
)
basic.forever(function () {
    if (IsDrivingEnabled) {
        for (let index = 0; index < 4; index++) {
            fwdMotors.drive(fwdMotors.DrivingDirection.Forward, 50)
            basic.pause(5000)
            fwdMotors.turn(25)
           if (lightThreshold < 0  || 0 < 0 || 0 < 0) {
            } else {
            }
        }
    } else {
        fwdMotors.stop()
    }
})

Step 29

Click ||Variables:Variables|| drag and drop ||Variables:temperatureThreshold|| block to replace left ||Logic:0|| of middle ||Logic:Comparison|| condition.

input.onButtonPressed(Button.A, function () {
    IsDrivingEnabled = true
})
input.onButtonPressed(Button.B, function () {
    IsDrivingEnabled = false
})
let IsDrivingEnabled = false
fwdMotors.setupDriving(
fwdMotors.leftServo,
fwdMotors.rightServo
)
basic.forever(function () {
    if (IsDrivingEnabled) {
        for (let index = 0; index < 4; index++) {
            fwdMotors.drive(fwdMotors.DrivingDirection.Forward, 50)
            basic.pause(5000)
            fwdMotors.turn(25)
           if (lightThreshold < 0  || temperatureThreshold < 0 || 0 < 0) {
            } else {
            }
        }
    } else {
        fwdMotors.stop()
    }
})

Step 30

Click ||Input:Input|| drag and drop ||Input:light level|| block to replace right ||Logic:0|| of ||Logic:Comparison|| condition with ||Variables:lightThreshold|| block on the left.

input.onButtonPressed(Button.A, function () {
    IsDrivingEnabled = true
})
input.onButtonPressed(Button.B, function () {
    IsDrivingEnabled = false
})
let IsDrivingEnabled = false
fwdMotors.setupDriving(
fwdMotors.leftServo,
fwdMotors.rightServo
)
basic.forever(function () {
    if (IsDrivingEnabled) {
        for (let index = 0; index < 4; index++) {
            fwdMotors.drive(fwdMotors.DrivingDirection.Forward, 50)
            basic.pause(5000)
            fwdMotors.turn(25)
           if (lightThreshold < input.lightLevel()  || temperatureThreshold < 0) {
            } else {
            }
        }
    } else {
        fwdMotors.stop()
    }
})

Step 31

Click ||Input:Input|| drag and drop ||Input:temperature ('C)|| block to replace right ||Logic:0|| of ||Logic:Comparison|| condition with ||Variables:temperatureThreshold|| block in the middle.

input.onButtonPressed(Button.A, function () {
    IsDrivingEnabled = true
})
input.onButtonPressed(Button.B, function () {
    IsDrivingEnabled = false
})
let IsDrivingEnabled = false
fwdMotors.setupDriving(
fwdMotors.leftServo,
fwdMotors.rightServo
)
basic.forever(function () {
    if (IsDrivingEnabled) {
        for (let index = 0; index < 4; index++) {
            fwdMotors.drive(fwdMotors.DrivingDirection.Forward, 50)
            basic.pause(5000)
            fwdMotors.turn(25)
           if (lightThreshold < input.lightLevel()  || temperatureThreshold < input.temperature()) {
            } else {
            }
        }
    } else {
        fwdMotors.stop()
    }
})

Step 32

Click ||Variables:Variables|| drag and drop ||Variables:set temperatureThreshold to 0|| and ||Variables:set lightThreshold to 0|| blocks inside ||Basic:on start|| block under ||fwdMotors:setup driving|| block. Recommended threshold values:

  • Temperature = 25
  • Light = 100
  • Note: Adjust the threshold values according to your surroundings.
input.onButtonPressed(Button.A, function () {
    IsDrivingEnabled = true
})
input.onButtonPressed(Button.B, function () {
    IsDrivingEnabled = false
})
let IsDrivingEnabled = false
let lightThreshold = 100
let temperatureThreshold = 25
fwdMotors.setupDriving(
fwdMotors.leftServo,
fwdMotors.rightServo
)
basic.forever(function () {
    if (IsDrivingEnabled) {
        for (let index = 0; index < 4; index++) {
            fwdMotors.drive(fwdMotors.DrivingDirection.Forward, 50)
            basic.pause(5000)
            fwdMotors.turn(25)
           if (lightThreshold < input.lightLevel()  || temperatureThreshold < input.temperature()) {
            } else {
            }
        }
    } else {
        fwdMotors.stop()
    }
})

Step 33

Click ||Loops:Loops|| drag and drop ||Loops:repeat 4 times|| block to nest inside ||Logic:if true then|| block.

input.onButtonPressed(Button.A, function () {
    IsDrivingEnabled = true
})
input.onButtonPressed(Button.B, function () {
    IsDrivingEnabled = false
})
let IsDrivingEnabled = false
fwdMotors.setupDriving(
fwdMotors.leftServo,
fwdMotors.rightServo
)
let lightThreshold = 100
let temperatureThreshold = 25
basic.forever(function () {
    if (IsDrivingEnabled) {
        for (let index = 0; index < 4; index++) {
            fwdMotors.drive(fwdMotors.DrivingDirection.Forward, 50)
            basic.pause(5000)
            fwdMotors.turn(25)
            if (input.lightLevel() > lightThreshold || input.temperature() > temperatureThreshold) {
                for (let index = 0; index < 4; index++) {
                    }
            } else {
            }
        }
    } else {
        fwdMotors.stop()
    }
})

Step 34

Click ||Music:Music|| drag and drop two ||Music:play tone Middle C for 1 beat|| blocks to nest inside ||Loops:repeat 4 times|| block.

input.onButtonPressed(Button.A, function () {
    IsDrivingEnabled = true
})
input.onButtonPressed(Button.B, function () {
    IsDrivingEnabled = false
})
let IsDrivingEnabled = false
fwdMotors.setupDriving(
fwdMotors.leftServo,
fwdMotors.rightServo
)
let lightThreshold = 100
let temperatureThreshold = 25
basic.forever(function () {
    if (IsDrivingEnabled) {
        for (let index = 0; index < 4; index++) {
            fwdMotors.drive(fwdMotors.DrivingDirection.Forward, 50)
            basic.pause(5000)
            fwdMotors.turn(25)
            if (input.lightLevel() > lightThreshold || input.temperature() > temperatureThreshold) {
                for (let index = 0; index < 4; index++) {
                    music.playTone(262, music.beat(BeatFraction.Whole))
                    music.playTone(262, music.beat(BeatFraction.Whole))
                }
            } else {
            }
        }
    } else {
        fwdMotors.stop()
    }
})

Step 35

Click ||Music:Music|| drag and drop ||Music:stop all sounds|| blocks to nest inside ||Logic:else|| condition.

input.onButtonPressed(Button.A, function () {
    IsDrivingEnabled = true
})
input.onButtonPressed(Button.B, function () {
    IsDrivingEnabled = false
})
let IsDrivingEnabled = false
fwdMotors.setupDriving(
fwdMotors.leftServo,
fwdMotors.rightServo
)
let lightThreshold = 100
let temperatureThreshold = 25
basic.forever(function () {
    if (IsDrivingEnabled) {
        for (let index = 0; index < 4; index++) {
            fwdMotors.drive(fwdMotors.DrivingDirection.Forward, 50)
            basic.pause(5000)
            fwdMotors.turn(25)
            if (input.lightLevel() > lightThreshold || input.temperature() > temperatureThreshold) {
                for (let index = 0; index < 4; index++) {
                    music.playTone(262, music.beat(BeatFraction.Whole))
                    music.playTone(262, music.beat(BeatFraction.Whole))
                }
            } else {
                music.stopAllSounds()
            }
        }
    } else {
        fwdMotors.stop()
    }
})

Step 36

Click ||Basic:Basic|| drag and drop ||Basic:pause (ms) 100|| block under ||Logic:else|| condition. Change ||Basic:100|| to ||Basic:1000||.

input.onButtonPressed(Button.A, function () {
    IsDrivingEnabled = true
})
input.onButtonPressed(Button.B, function () {
    IsDrivingEnabled = false
})
let IsDrivingEnabled = false
fwdMotors.setupDriving(
fwdMotors.leftServo,
fwdMotors.rightServo
)
let lightThreshold = 100
let temperatureThreshold = 25
basic.forever(function () {
    if (IsDrivingEnabled) {
        for (let index = 0; index < 4; index++) {
            fwdMotors.drive(fwdMotors.DrivingDirection.Forward, 50)
            basic.pause(5000)
            fwdMotors.turn(25)
            if (input.lightLevel() > lightThreshold || input.temperature() > temperatureThreshold) {
                for (let index = 0; index < 4; index++) {
                    music.playTone(262, music.beat(BeatFraction.Whole))
                    music.playTone(262, music.beat(BeatFraction.Whole))
                }
            } else {
                music.stopAllSounds()
            }
            basic.pause(1000)
        }
    } else {
        fwdMotors.stop()
    }
})

Step 37 @showhint

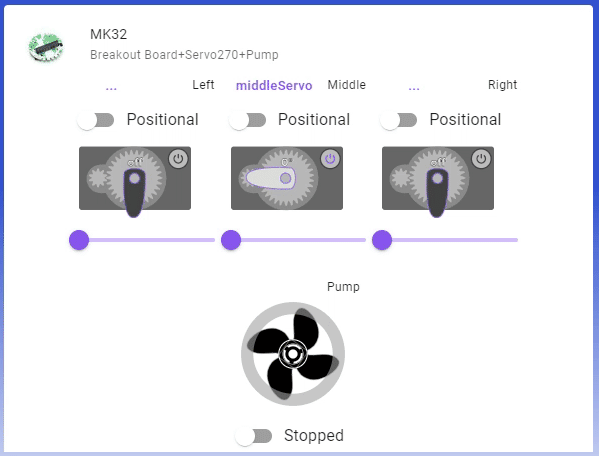

|Download| and test your code. Click the bulb icon to see how the simulator shows the components working. sonar-servos

Step 38 @showhint

|Download| and test your code. Click the bulb icon to see how the simulator shows the components working. servos

Step 39 @showdialog

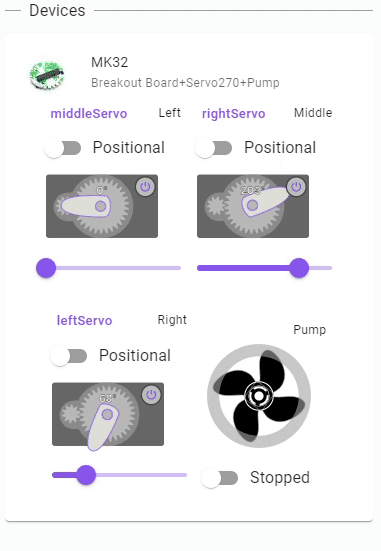

If after |Downloading| your project does not work please refer to the image and make sure your components are assigned correctly. correct-assignment

Step 40 @showdialog

Need help in assigning the right components to their simulators. Watch the video. final-download

Step 41 @showdialog

Congratulations on completing your Wildfire Tracking with Autonomous Vehicles Project!

Step 42 @showdialog

After your project is complete go back to the lesson for more challenges and extensions.
